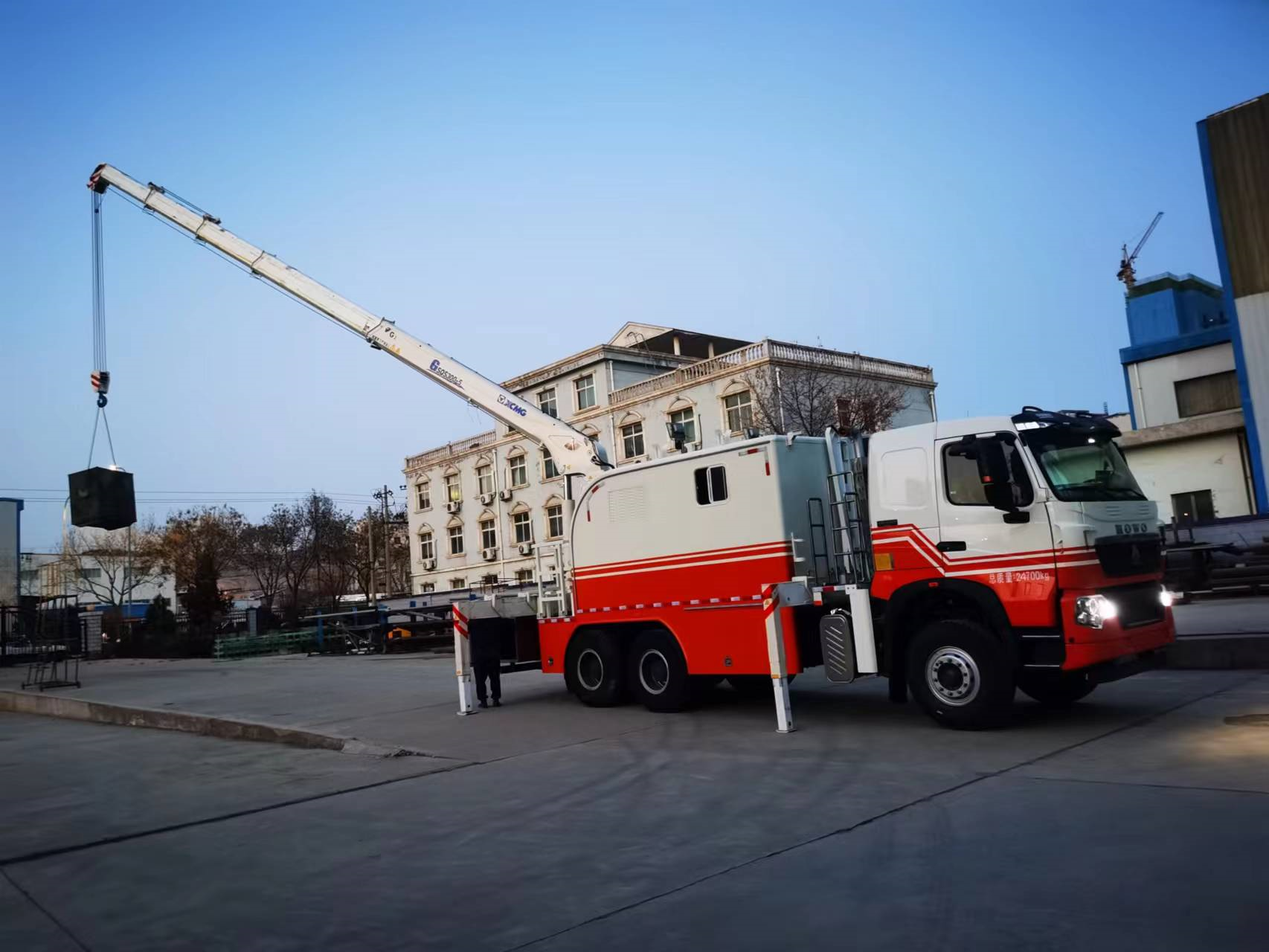

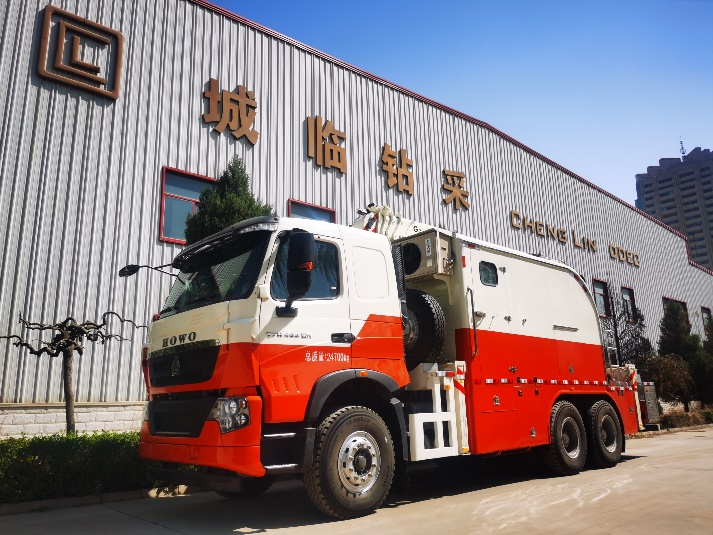

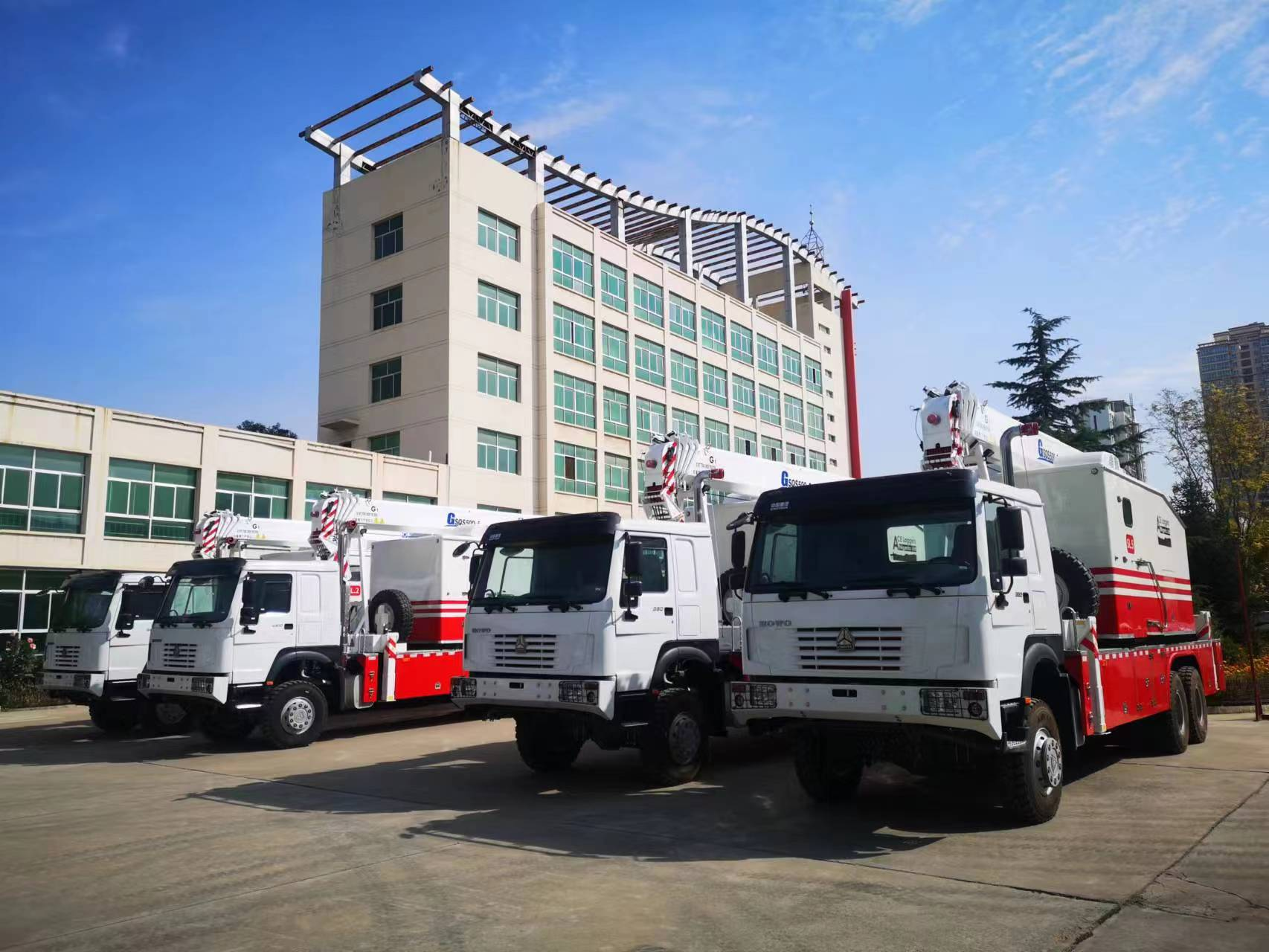

Crane mounted slickline truck LC5250TCS

General description

Compared with conventional production and slickline logging trucks, HAISHI crane mounted slickline truck requires fewer supporting vehicles and operators, saving production costs including labor, oil, maintenance and operation. It not only reduces traffic safety risk, improves construction efficiency, but also reduces carbon emission and protects ecological environment. It is in line with Chinese national laws and regulations and standards on oil field operation vehicles, and truly realizes the multi-purpose of one car.

Features

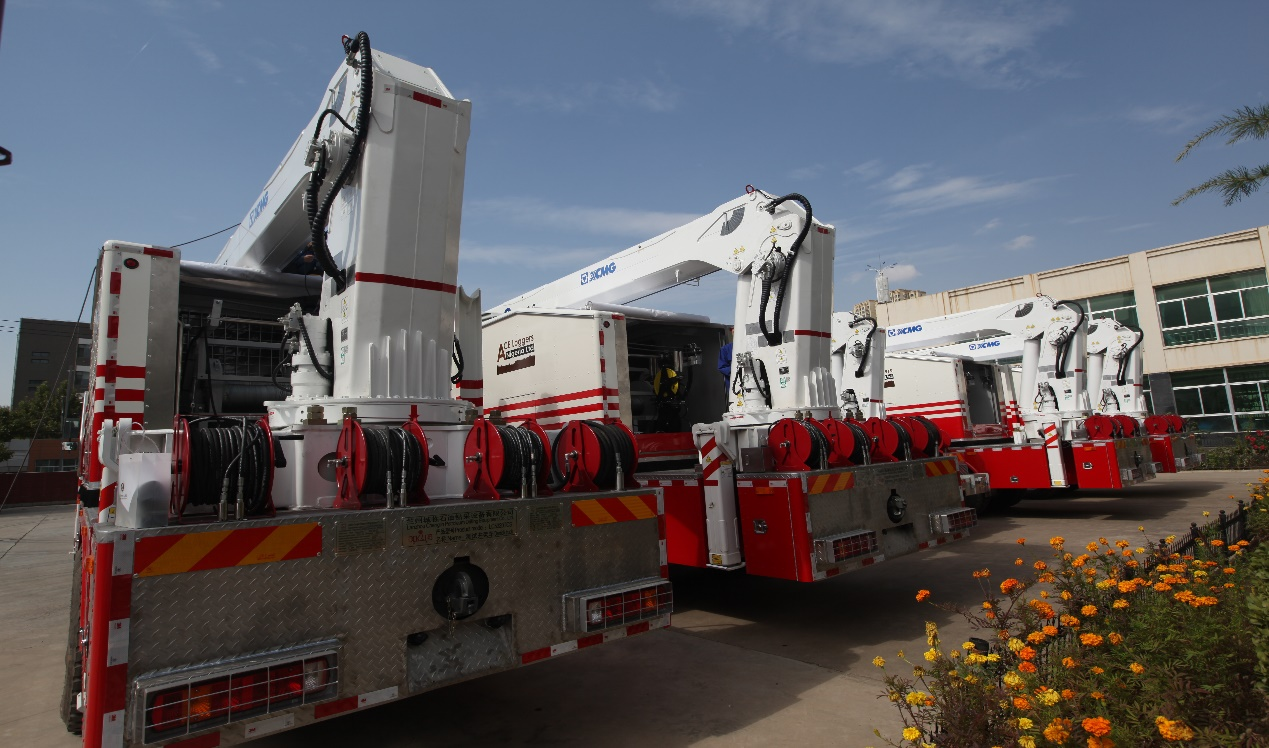

Vehicle crane is set in the center of the rear end to balance gravity of the vehicle and ensure driving safety.

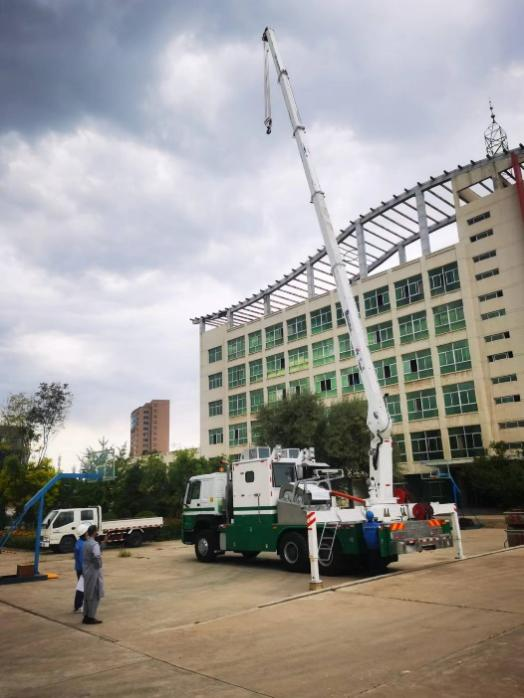

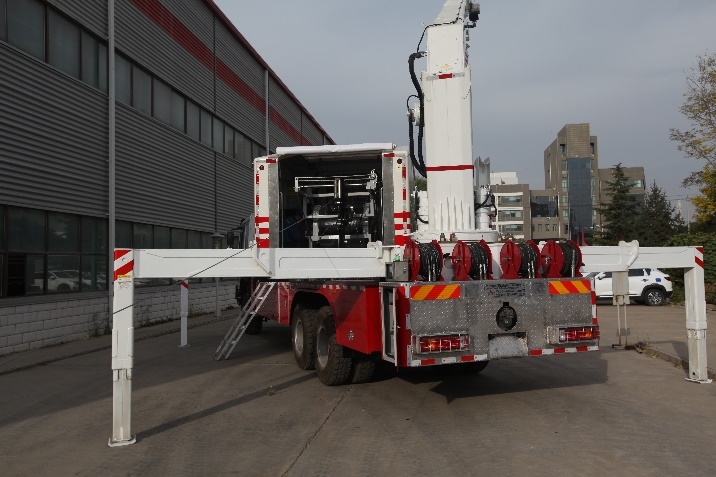

The 13T crane is equipped with front and rear H-shaped four legs, and the operating range and height can meet the requirements of well testing in different areas.

Transmission system adopts famous international brand pumps, motors and reducers and measurement system.

Suitable for high-speed jarring operation of gas well, slickline pressure test of water well, and dropping-fishing work in oilfield.

Applications

Units can be used for high-speed shock operation of gas wells,slickline pressure test and fishing job and other operations.

Basic parameters and performance of Crane

No.	Items	Parameters
1	Maximum lifting moment	330kN·m
2	Maximum lifting weight of basic arm	13t
3	Maximum arm length	18.75m
4	Maximum lifting height	20.2 m
5	Dead weight of crane	4.6t
6	Maximum working pressure of crane	26MPa
7	Rated flow of hydraulic system	80+40 L/min
8	Hoisting speed	12m/s
9	Operation mode	Manual/standing control at right rear position of vehicle
10	Outrigger structural form	Double chamber telescopic square box leg
11	Rotary range	360 ° All rotary
12	Safety device	Overload protection (unloading), overwinding protection (unloading), overflow valve, lifting balance valve, rotary balance valve, amplitude balance valve
13	Lifting mechanism	Single lifting mechanism, hydraulic motor + planetary mechanism (normally closed brake)
14	Hook position	Between cab and carriage
15	Telescopic boom	1 Basic boom and 5 telescopic boom, synchronous expansion

Basic parameters

No.	Items	Parameters

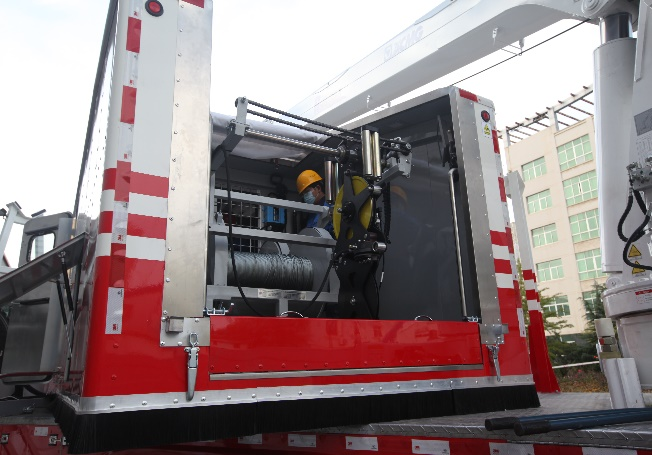

1	Winch	Capacity	Slickline 9000m(Φ3.2mm), Wireline 5000m(Φ4.8mm)/ Slickline 7000m (Φ2.8mm)
2		Lifting capabilities	15kN/25kN
3		Lifting speed	Wireline 90~12000m/h, Slickline200-20000m (Jarring, dropping-fishing work)
4		Transmission form	Power take-off + hydraulic system + reducer + chain or power take-off + hydraulic system + reducer
5	Chassis	Sino Truck ZZ1257N464HF1(HOWO China VI emission)
6	Drive form	6*4
7	Passenger numbers	2persons
8	Dimensions	L x W x H: 9450mmx2500mmx3900mm
9	Wheelbase	4325mm+1350mm
10	ENGINE	Model	MC11.40-61
11		Capacity	297kW, 1900r/min
12		Max. torque	Maximum torque output 1900N·m at 1000~1400r/min
13	Gearbox	HW19709XST, with synchronizer
14	Gross mass	25T
15	Max. speed	90km/h
16	Approach angle	20°
17	Departure corner	11°

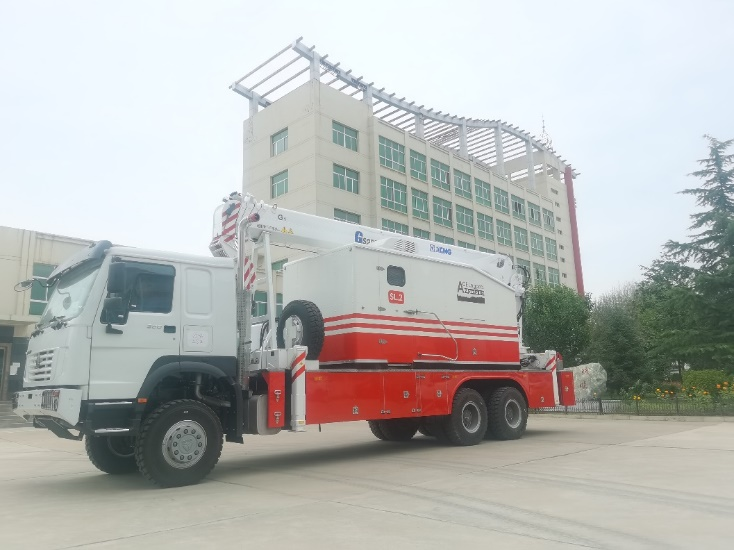

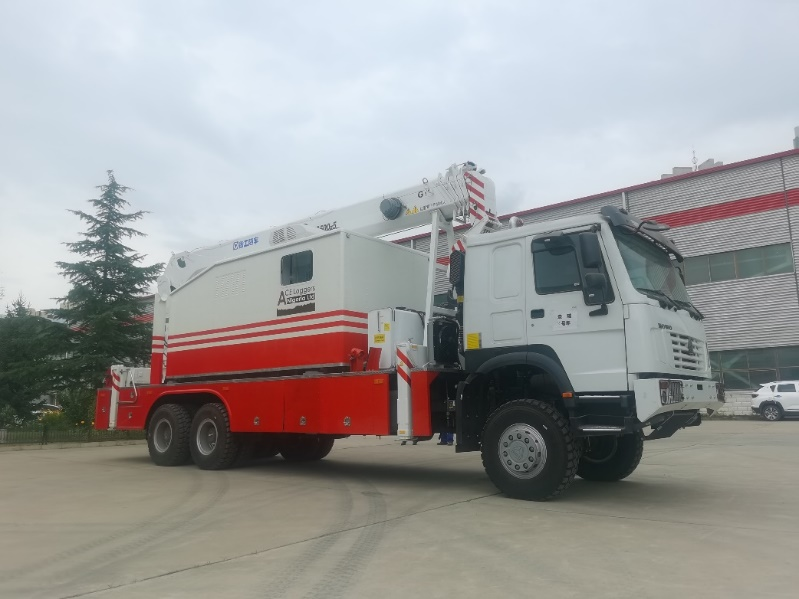

Crane mounted slickline truck LC5251TCS

Product Description

Compared with other conventional Crane mounted slickline truck, fewer supporting vehicles and operators are required to cooperated with the HAISHI LC5251TCS slickline truck. Thus saving the production costs such as labor, fuel, maintenance, operation, etc. As a multi-purpose slickline truck, it can not only reduce the risk of traffic accidents, but also improve the efficiency of construction operation.

Features

The truck-mounted crane is set in the center at the rear end of the truck, with the center of gravity of the whole truck is maintained on the center line. So the driving safety can be guaranteed. The installed 12T crane is equipped with H-type double outriggers. This truck will be able to meet well testing requirements of the working range and working height in various areas. The pumps, motors and reducers of truck’s transmission system are all imported brand, and the metering system adopts the one from international famous brand. This derrick truck is suitable for high-speed jolting operations in gas wells, slick line pressure testing in water wells, and other pulling and running operations.

Applications

Units can be used for high-speed shock operation of gas wells,slickline pressure test and fishing job and other operations.

Basic Parameters and Performance of the Boom

No.	Item	Parameter
1	Maximum Lifting Torque	330kN • m
2	Maximum Lifting Weight of the Basic Jib	12t
3	Maximum Length of the overhanging beam	21m
4	Maximum Lifting Height	21.6 m
5	Maximum Working Radius	20 m
6	Crane Weight	4.75t
7	Maximum Working Pressure of the Crane	26Mpa
8	Rated Flow of the Hydraulic System	63+40 L/min
9	Lift Speed	12m/s
10	Operation Method	Manual/Stand on the right rear side of the truck
11	Structure of the Outrigger	Double-chamber telescopic outriggers installed in square boxes
12	Rotate Range	360°
13	Safety Equipment	Overload protection (unloading), over-winding protection (unloading), relief valve, lifting balance valve, swing balance valve, luffing balance valve
14	Lifting Mechanism	Single Lifting mechanism, which consists of hydraulic motor + planetary mechanism (normally engaged brake)
15	Hook Placement	In front of the cab
16	Crane Jib	Consists of one basic jib and four telescopic booms, with synchronous telescoping function

Main Technical Parameters

No.	Item	Parameter
1	Winch	Total Capacity	Double drum structure, steel wire 7500m (Φ2.8mm), steel wire 7500m (Φ3.2mm)
2		Lifting Capacity	15KN/25KN
3		Lifting Speed	Steel Wire 0-24000m/h (jolting, pulling and running)
4		Transmission Type	PTO + hydraulic system + reducer + chain
5	Chassis	Sinotruk ZZ1257N4647-B1 (Howo Chassis)
6	Drive Type	6*4
7	Seating Capacity	2
8	Overall Dimensions of the Truck	LengthWidthHeight 10400mmx2520mmx4046mm
9	Wheelbase	4600mm+1350mm
10	Engine	Type	WD615.69
11		Power	246Kw/2200kw/rpm
12		Maximum Torque	1350/1100～1600
13	Gearbox	HW19709XST
14	Curb Weight	25T
15	Maximum Speed	80Km/h
16	Approach Angle	17°
17	Departure Angle	14°

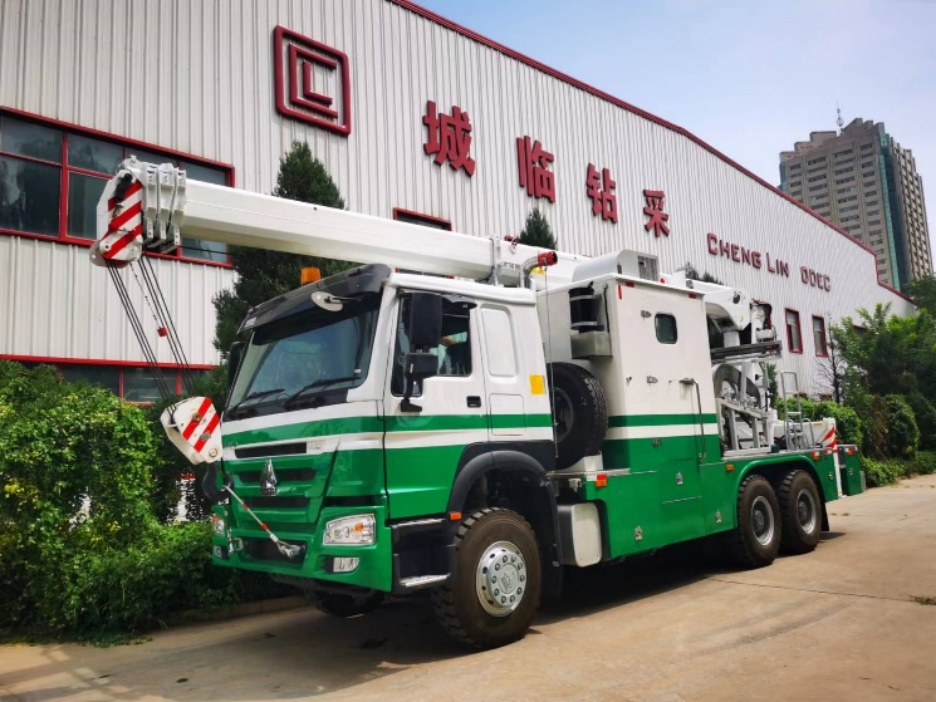

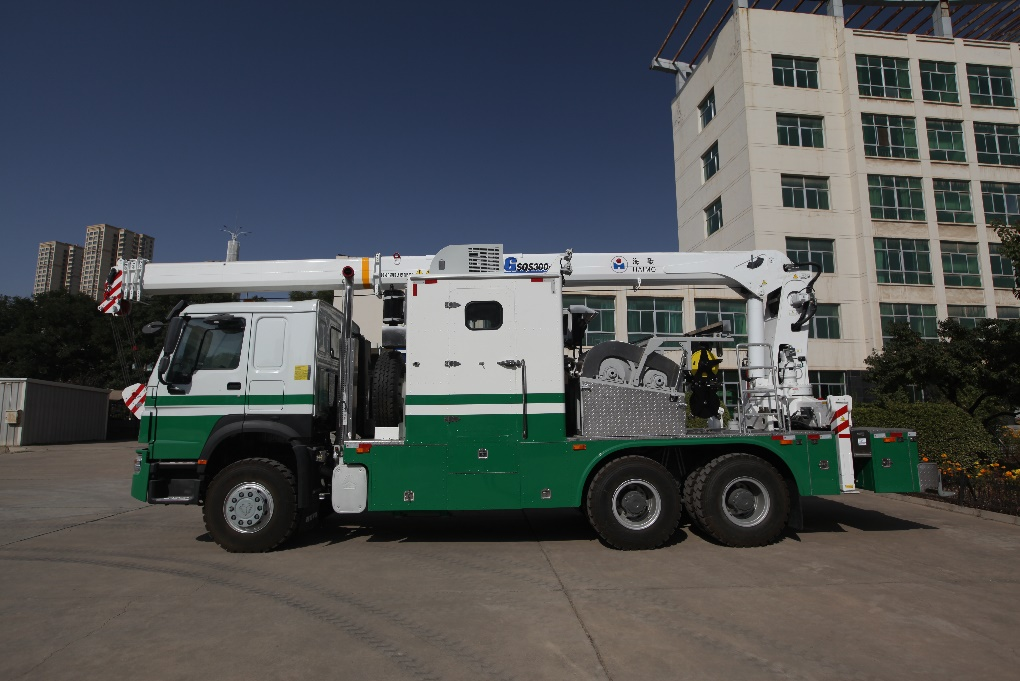

Crane mounted slickline truck LC5320TCS

Product Description

Compared with other conventional Crane mounted slickline truck, fewer supporting vehicles and operators are required to cooperated with the HAISHI LC5320TCS slickline truck. Thus saving production costs such as labor, fuel, maintenance, operation, etc. As a multi-purpose slickline truck, it can not only reduce the risk of traffic accidents, but also improve the efficiency of construction operation.

Features

The truck-mounted crane is set in the center at the rear end of the truck, with the center of gravity of the whole truck is maintained on the center line. So the driving safety can be guaranteed. The installed 20T crane is equipped with H-type four outriggers which are installed in front and rear of the truck. The operating system and the cab of the winch system can be rotated 30 degrees to one side. It should be confirmed without obstructed views for the winch cable moving and operations before rotate. This truck will be able to meet well testing requirements of the working range and working height in various areas. The pumps, motors and reducers of truck’s transmission system are all imported brand from manufacturers like Bosch Rexroth. And the metering system adopts the international famous brand. This derrick truck is suitable for high-speed jolting operations in gas wells, slick line pressure testing in water wells, and other pulling and running operations.

Applications

Units can be used for high-speed shock operation of gas wells,slickline pressure test and fishing job and other operations.

Basic Parameters and Performance of the Boom

No.	Item	Parameter
1	Maximum Lifting Torque	520kN • m
2	Maximum Lifting Weight of the Basic Jib	20t
3	Maximum Length of the overhanging beam	23m
4	Maximum Lifting Height	25 m
5	Crane Weight	8.4t
6	Maximum Working Pressure of the Crane	28Mpa
7	Rated Flow of the Hydraulic System	80+40 L/min
8	Operation Method	Manual/Stand on the right or left rear sides of the truck
9	Structure of the Outrigger	Double-chamber telescopic outriggers installed in square boxes
10	Rotate Range	360°
11	Safety Equipment	Overload protection (unloading), over-winding protection (unloading), relief valve, lifting balance valve, swing balance valve, luffing balance valve
12	Lifting Mechanism	Single Lifting mechanism，which consists of Hydraulic motor + planetary mechanism (normally engaged brake)
13	Hook Placement	Between the cabin and the compartment
14	Crane Jib	Consists of one basic jib and four telescopic booms, with synchronous telescoping function

Main Technical Parameters

No.	Item	Parameter
1	Winch	Total Capacity	Steel wire 8000m (Φ3.2mm), steel wire 8000m(Φ4.8mm)
2		Lifting Capacity	20KN
3		Lifting Speed	Slickline Φ3.2mm 0～24000m/h, slickline Φ4.8mm 0-24000m/h (jolting, pulling and running)
4		Transmission Type	PTO + hydraulic system + reducer + chain
5	Chassis	SINOTRUCK ZZ2257N5857C1
6	Drive Type	6*6
7	Seating Capacity	2
8	Overall Dimensions of the Truck	LengthWidthHeight 11490mmx2550mmx4553mm
9	Wheelbase	5800mm+1400mm
10	Engine	Type	D10.38-30
11		Power	279Kw/2000kw/rpm
12		Maximum Torque	1590/ (1200～1500)
13	Gearbox	19710
14	Curb Weight	32T
15	Maximum Speed	76Km/h
16	Approach Angle	31°
17	Departure Angle	17°
