1、Introduction

Choke and Kill Manifold is necessary in well control process. The choke valves can be used for controling the casing pressure to stablize the well bottom pressure when drilling. And while the normal circum of mud was blocked, it is able to balance the inner pressure of ground by pushing mud through Kill Manifold by pump. Choke and Kill Manifold can also be used for well washing.

2、specifications

Working Pressure:          3000psi- 15000psi

Working Medium:      Oil(Gas)﹑Mud﹑H2S﹑CO2

Main bore size:      2 1/16" 2 9/16" 3 1/8" 3 1/16" 4 1/16"

Choke Outlet size:    2 1/16" 2 9/16" 3 1/8" 3 1/16" 4 1/16"

Outlet size:          2 1/16" 2 9/16" 3 1/8" 3 1/16" 4 1/16"

Temperature Class:          K~U (-60℃ to 121℃)

Material Class:          EE  FF  HH

Product Specification:           PSL3/3G

Produce criterion:           API SPEC 6A    API SPEC 16C   NACE MR-0175

3、Widely used in Russia, CIS nations, South and North Africa, Middle East, Southeast Asia, Africa regions, etc

4、 Preparation period: According to different product specifications, the production period is 60~80 days.

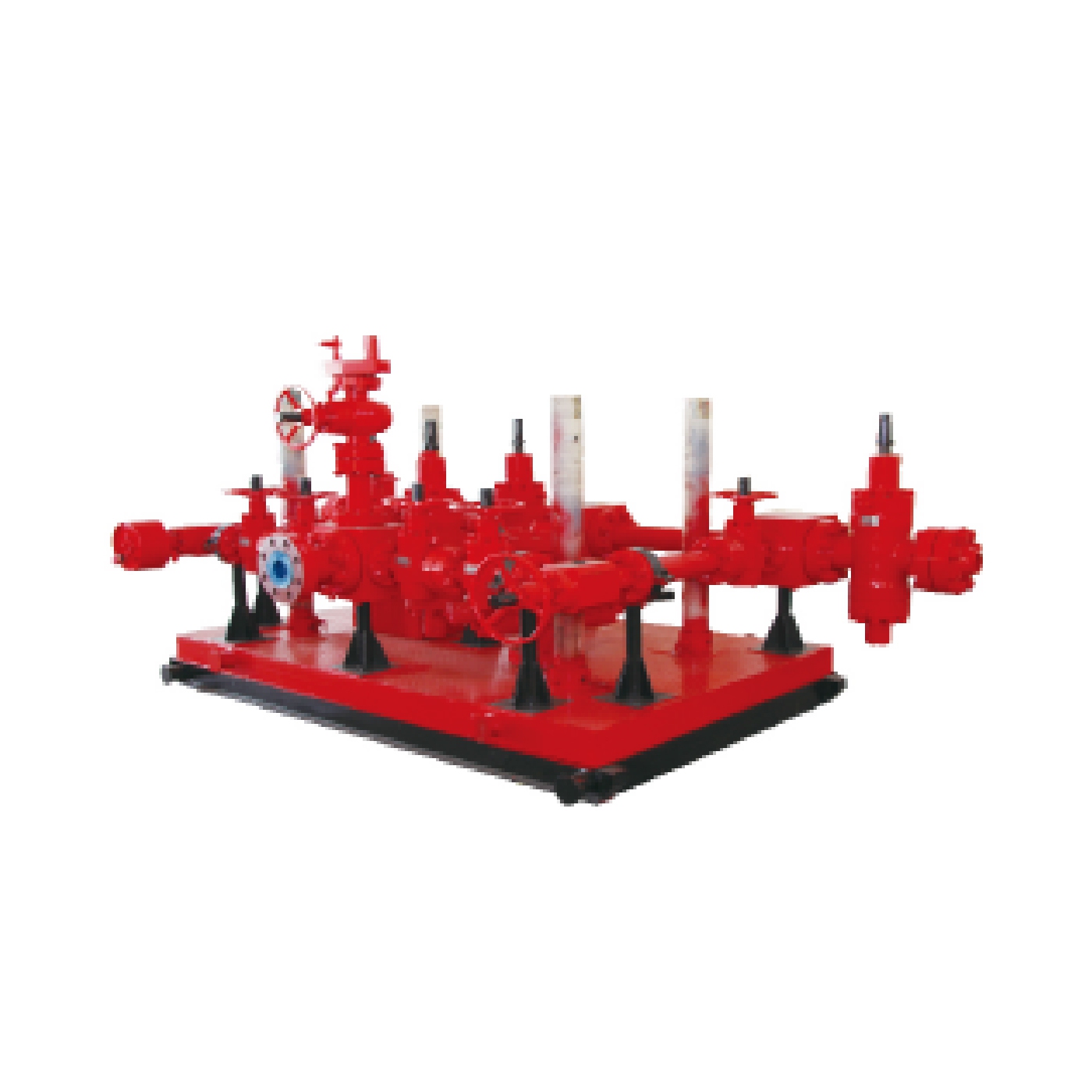

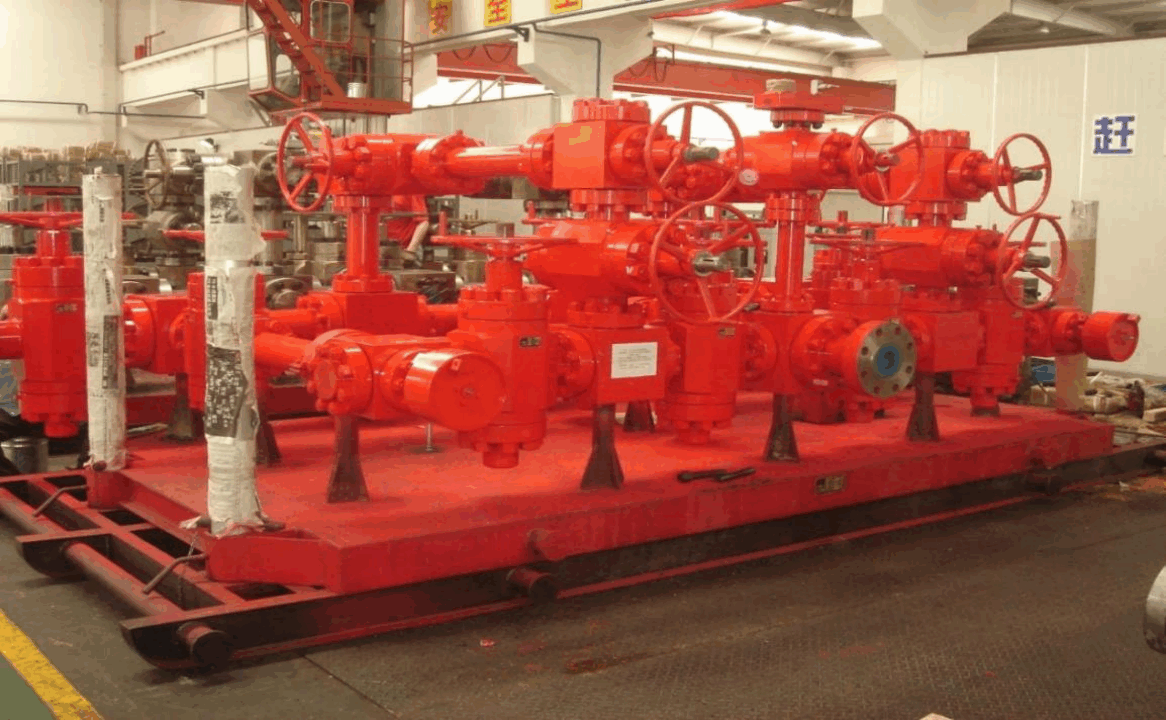

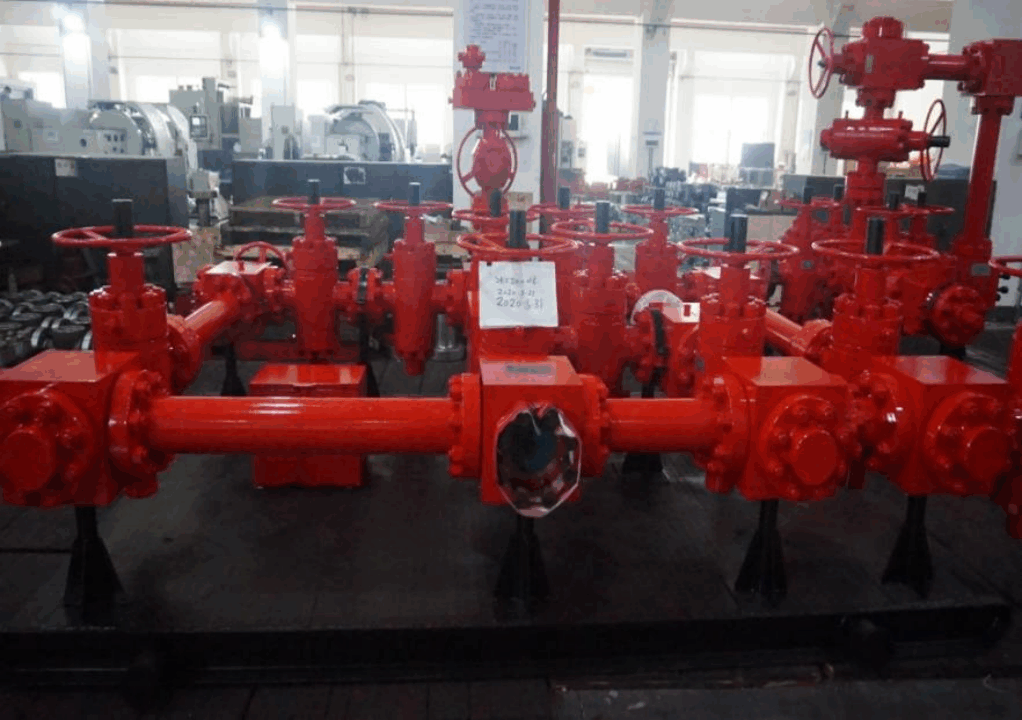

5、Product photos

 105MPa / FF-NL,PU,PSL3G,PR2

YJG 78-105 节流压井管汇

YJG 78-105  Choke and Kill Manifold
