Product introduction:

The remote control ignition device for oil drilling operation is mainly composed of burner (torch head), ZY-150 remote control ignition device, wire reel, igniter box, diesel gun, connecting line and oil pipe. This product adopts high-performance ignition circuit with stable performance and reliable operation. It is mainly used for the combustion of flammable harmful gas or waste gas in oil drilling operations and natural gas exploration and development to eliminate its harm to the environment and safety. It is a safe environmental protection equipment.

ZY-150 remote control ignition device for drilling operation adopts portable instrument case, which integrates remote ignition and manual ignition. The control box has a built-in 12VDC battery, which can be charged by an external 220VAC power supply. The igniter is also equipped with a remote ignition device, which can realize remote ignition within a range of 150 meters. Therefore, this product is especially suitable for the ignition of oil and natural gas drilling and venting flares. For torches with high pressure and large venting, the reliability of ignition is ensured by igniting the burner first and then igniting the main torch.

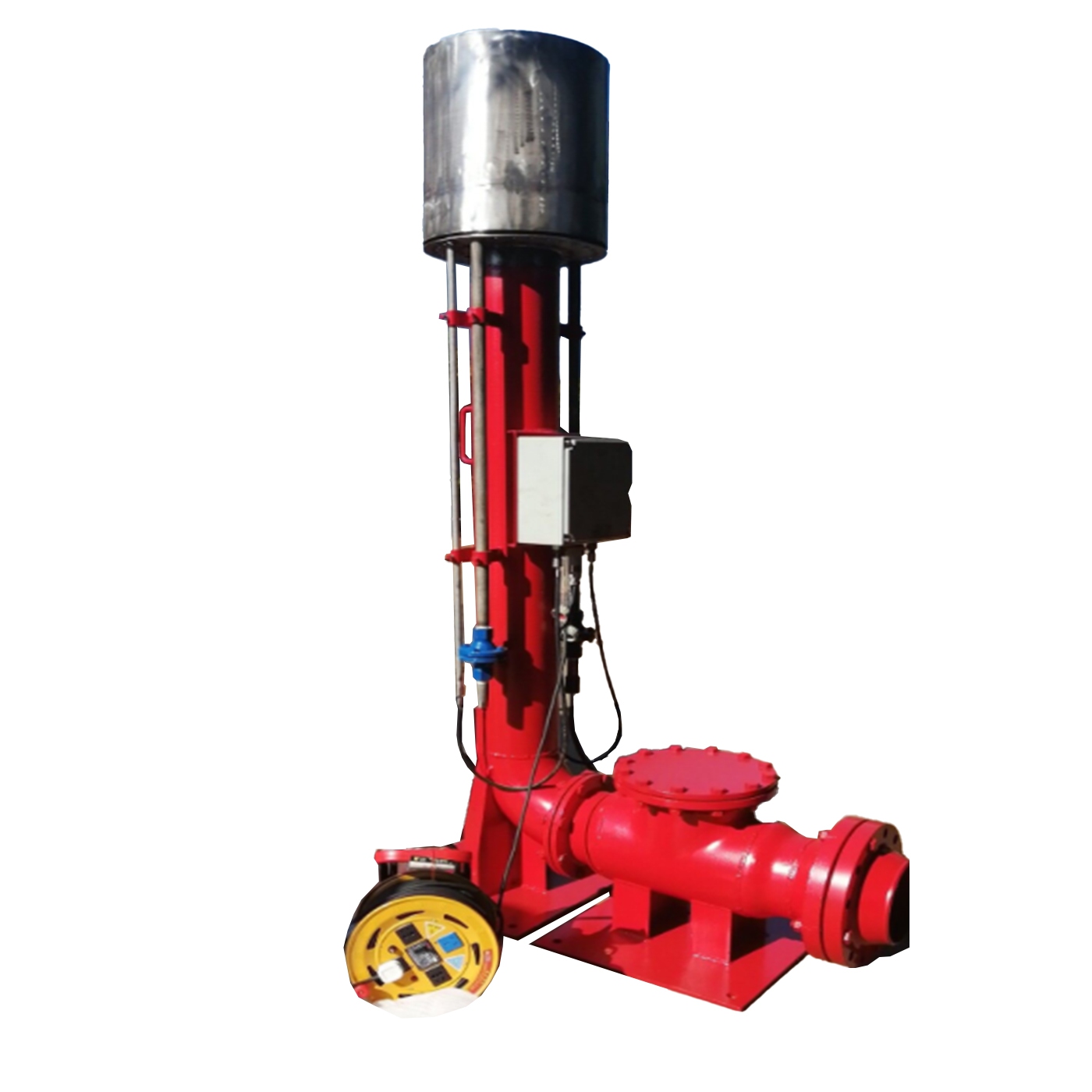

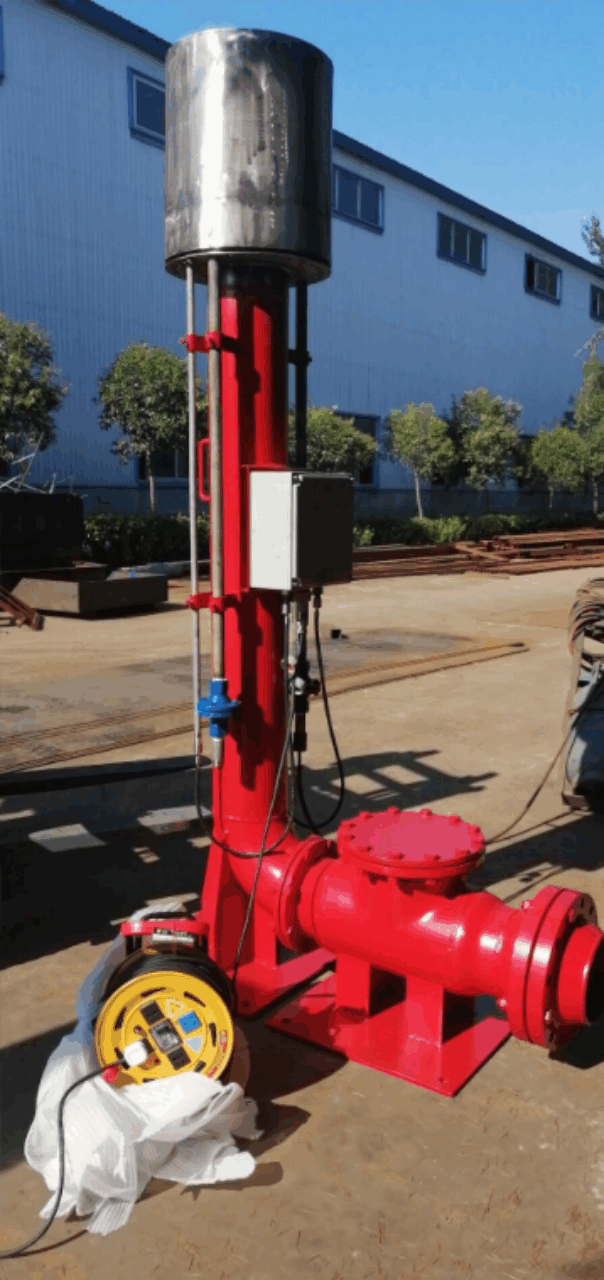

Pictures and parameters of vertical electronic ignition device

（Burner (torch) diameter）：DN200（customizable）

  Burner Height (Length):3m（customizable）

（ambient temperature）：-40～80℃

（connecting flange）：Provided on customer request

（supporting fuel）：Gas Tank / Diesel Tank

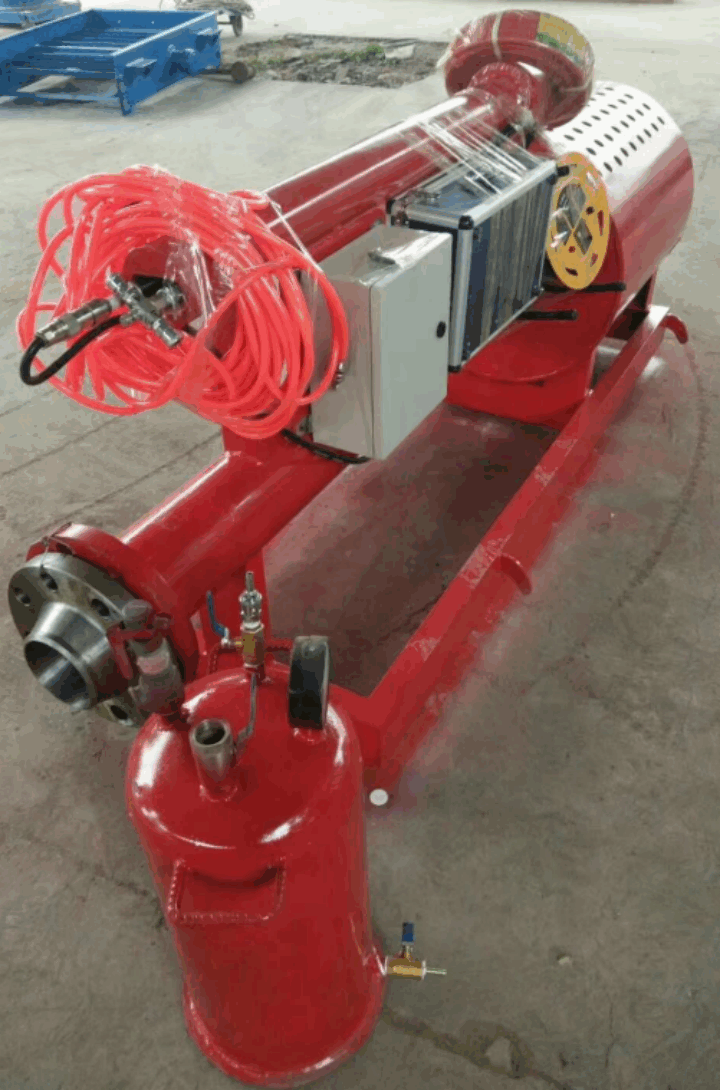

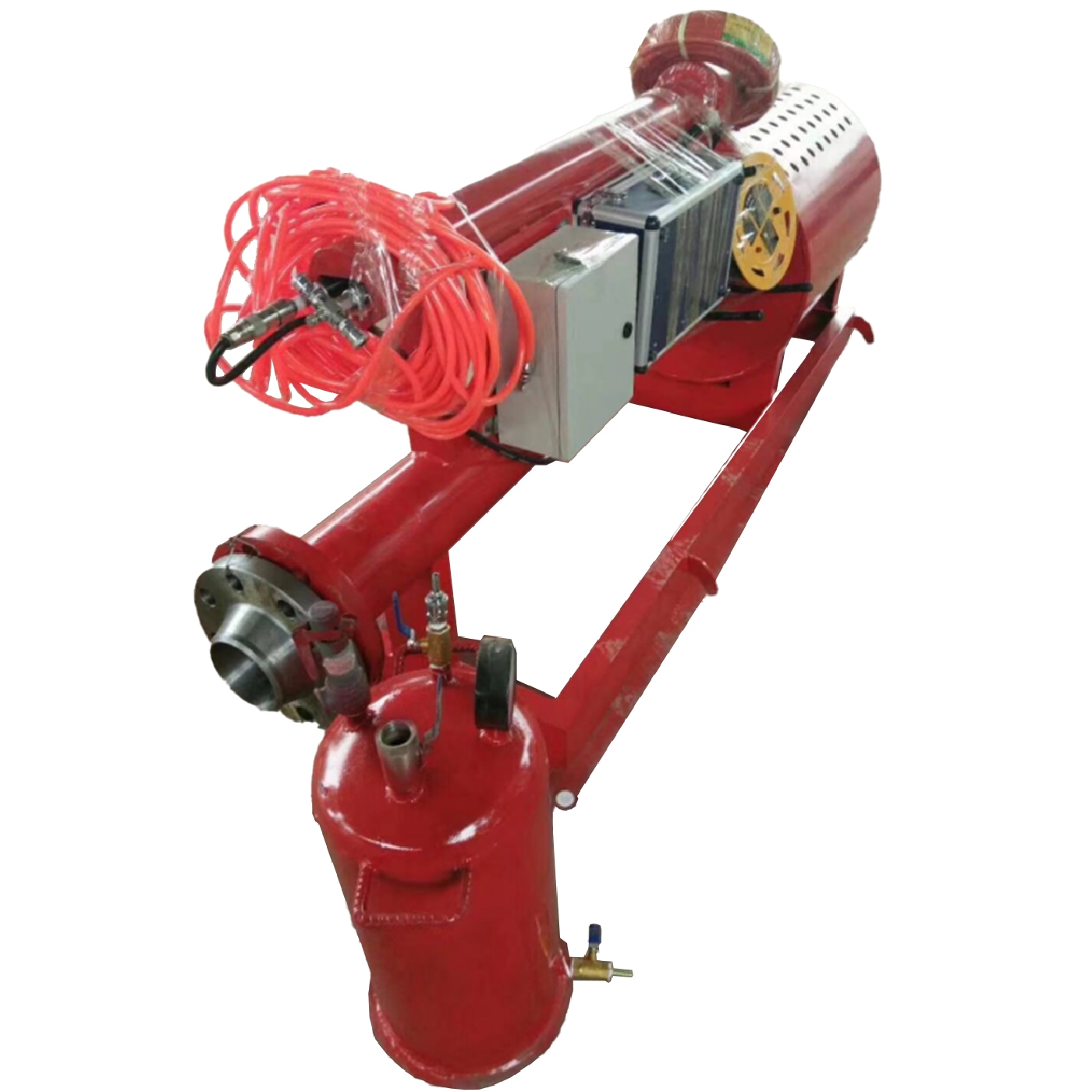

Horizontal electronic ignition device pictures and parameters

（Burner (torch) diameter）：DN125（customizable）

  Burner Height (Length):1.8m（customizable）

（ambient temperature）：-40～80℃

（connecting flange）：Provided on customer request

（supporting fuel）：Gas Tank / Diesel Tank

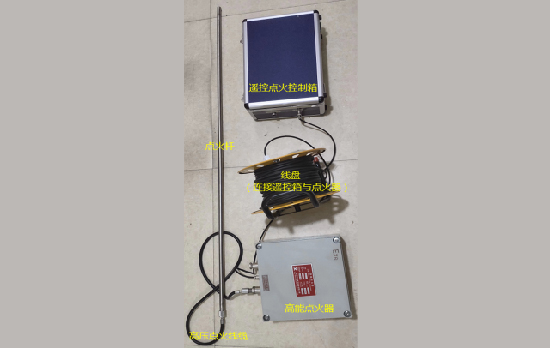

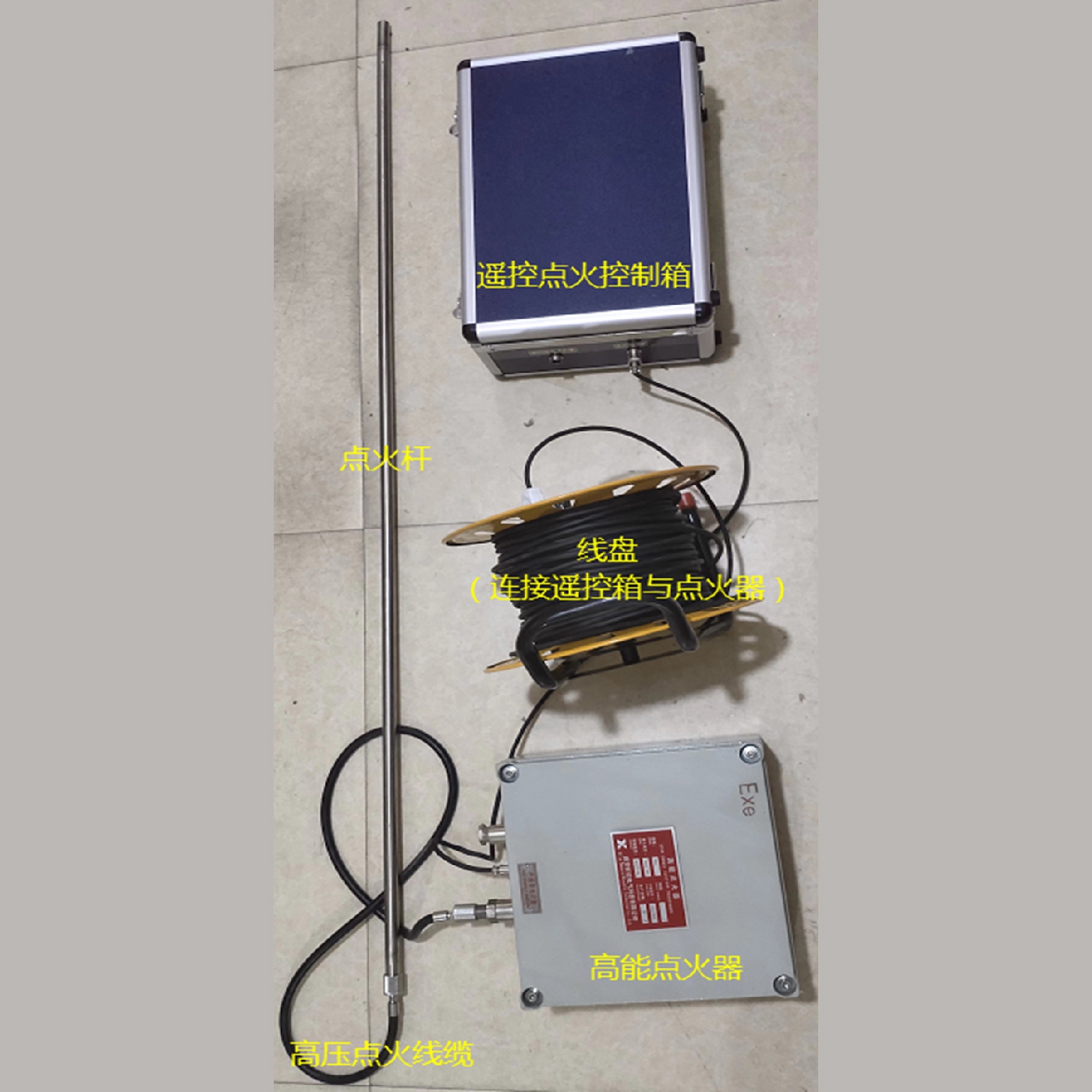

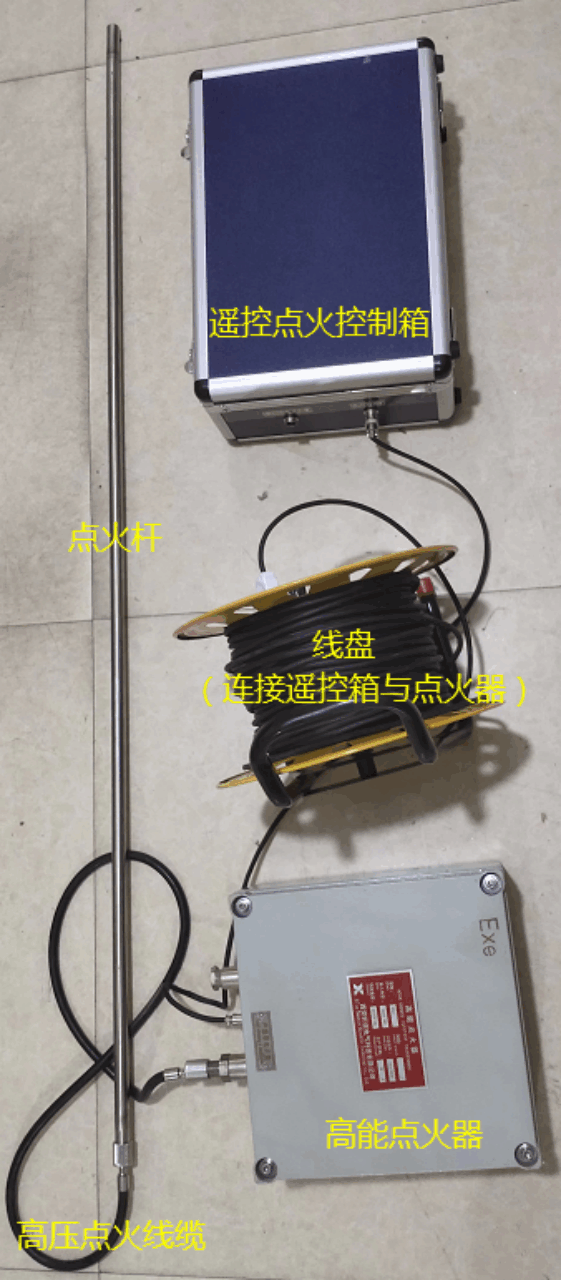

Matching ignition device

（Remote Ignition Device Model）：ZY-150

（Charger）：220VAC 50Hz

（charging time）：≥8h

（battery）：12VDC   9Ah

（Reel cable length）：30m

（High-energy igniter model and ignition energy）：GDQ-12      12J

（High Voltage Ignition Cable Length）：1.2m

（ignition rod size）：￠18  L=1.5m
