Product details

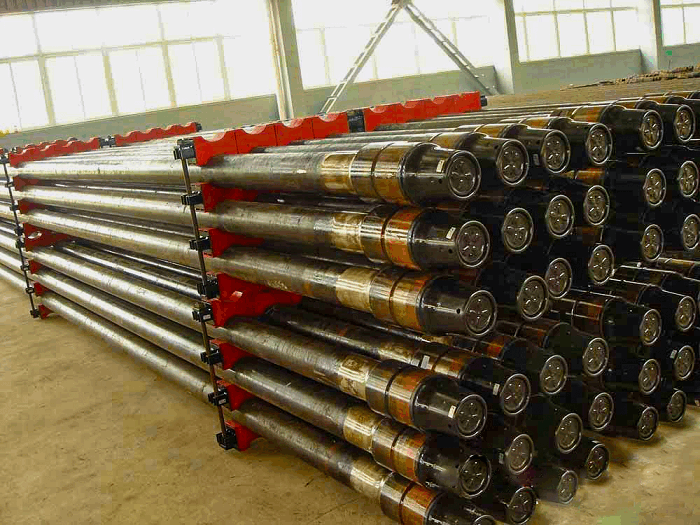

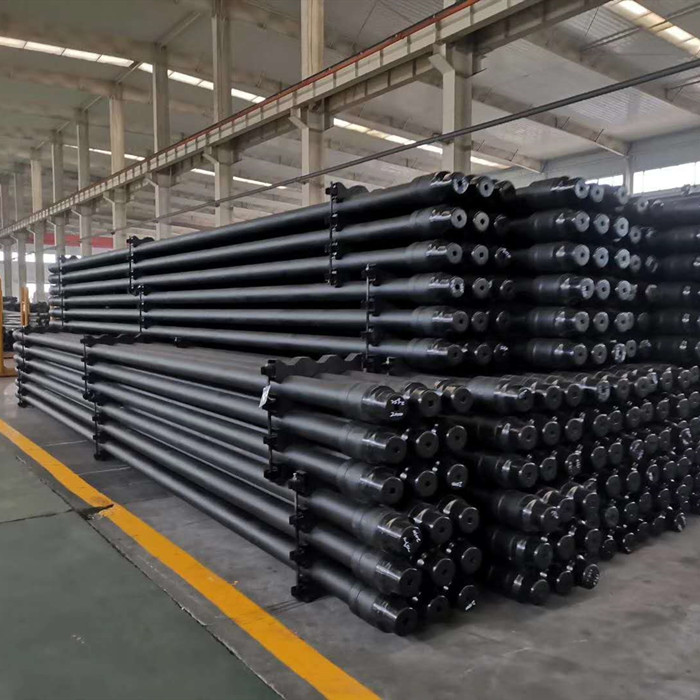

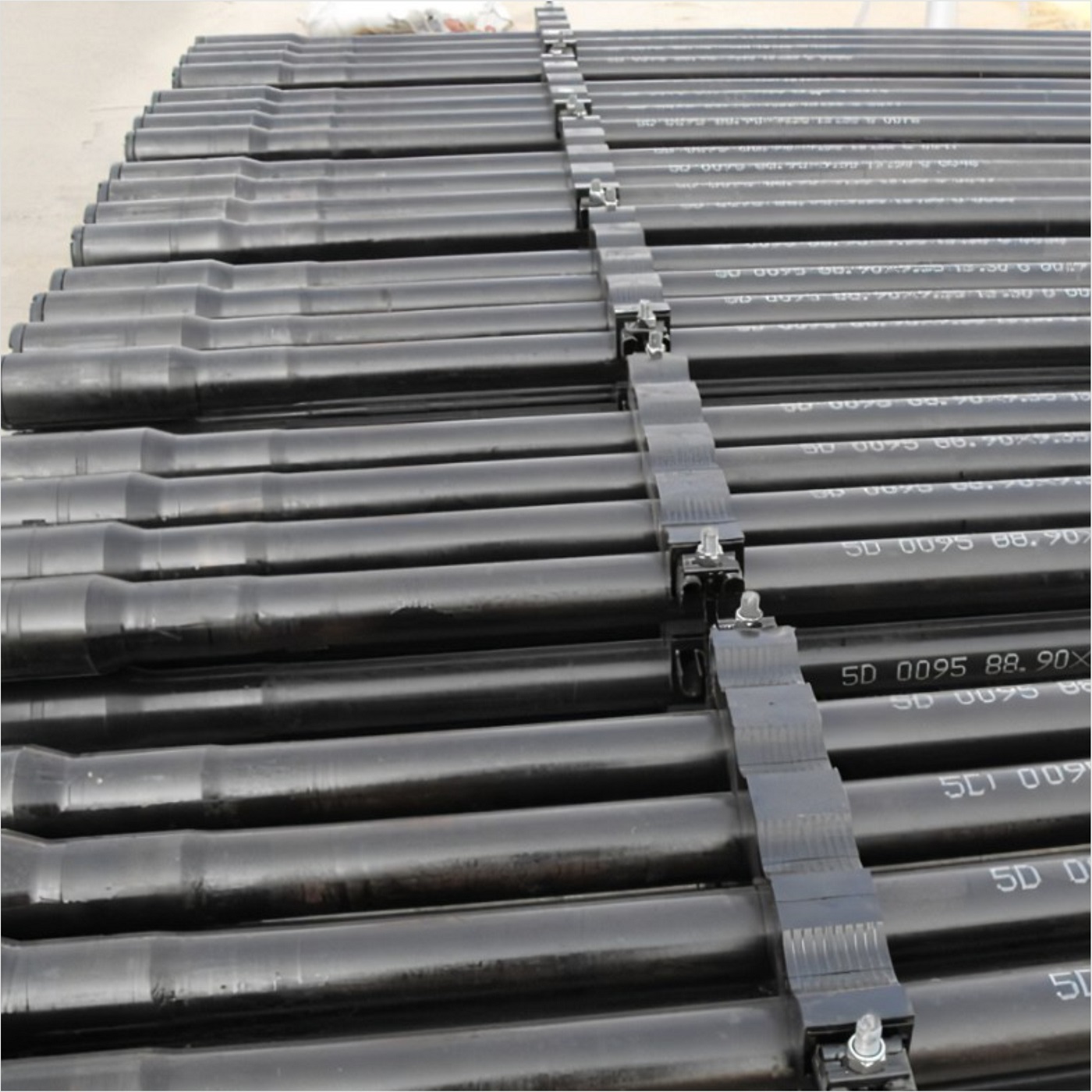

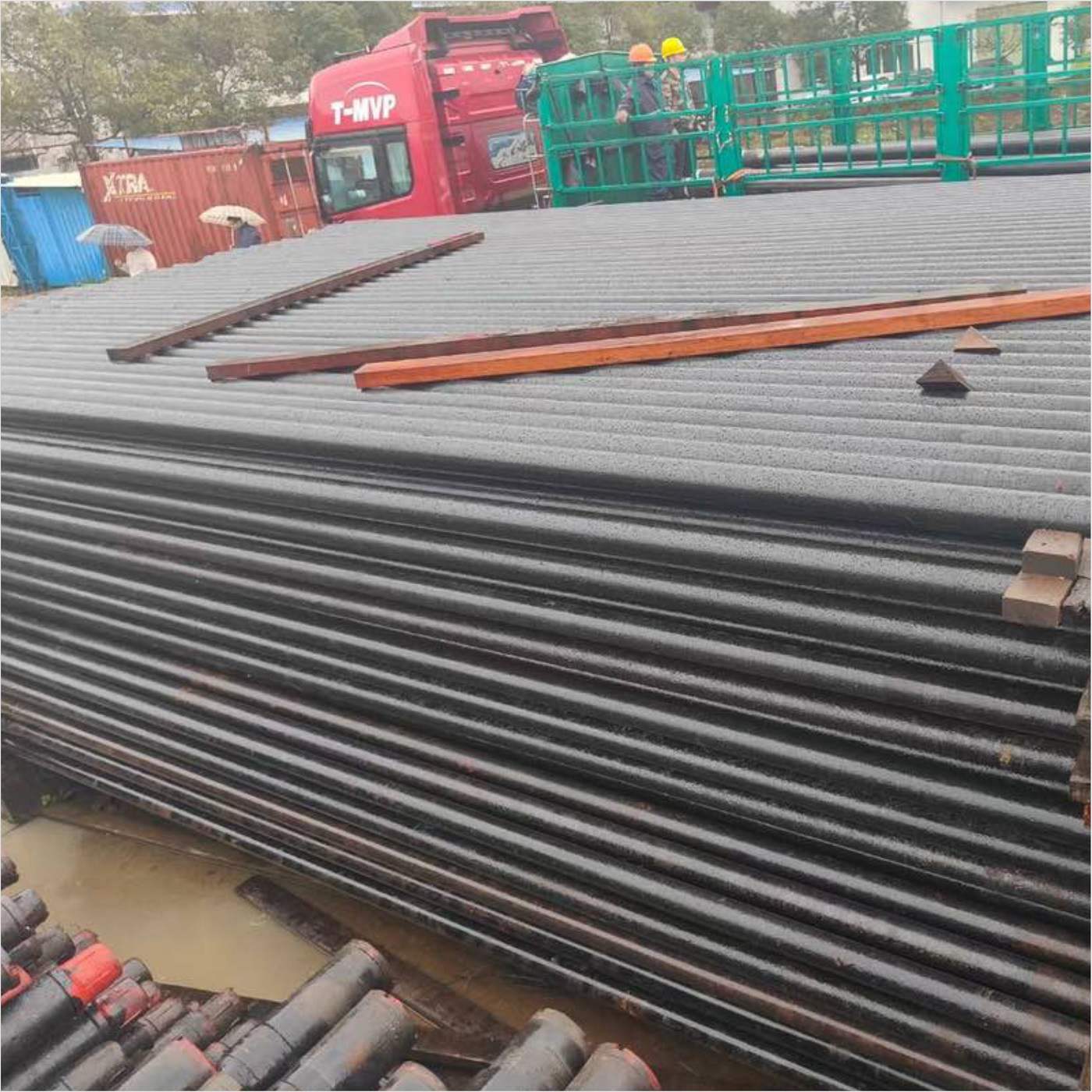

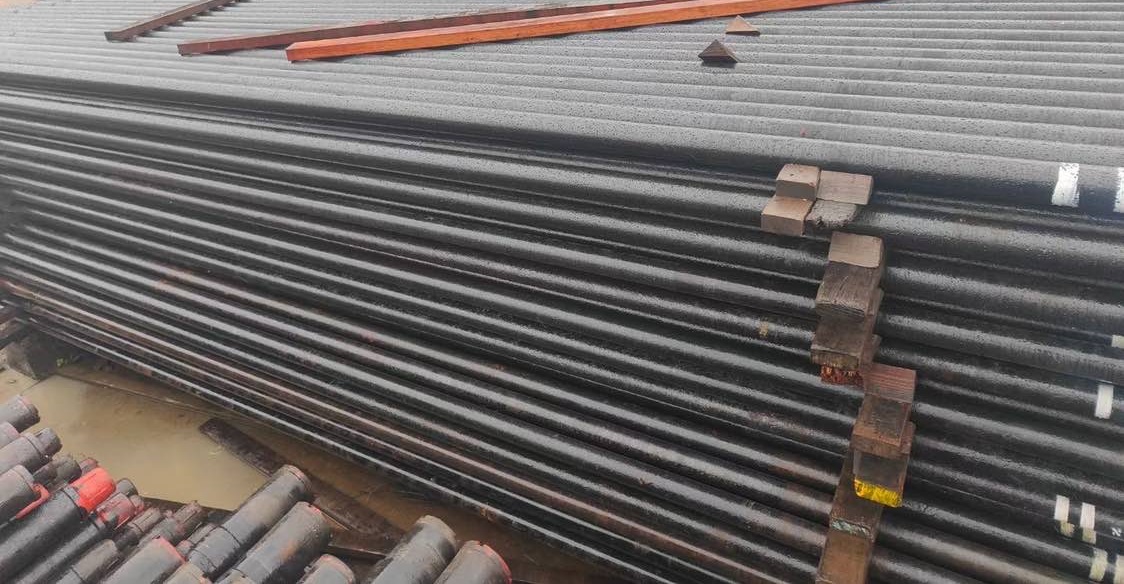

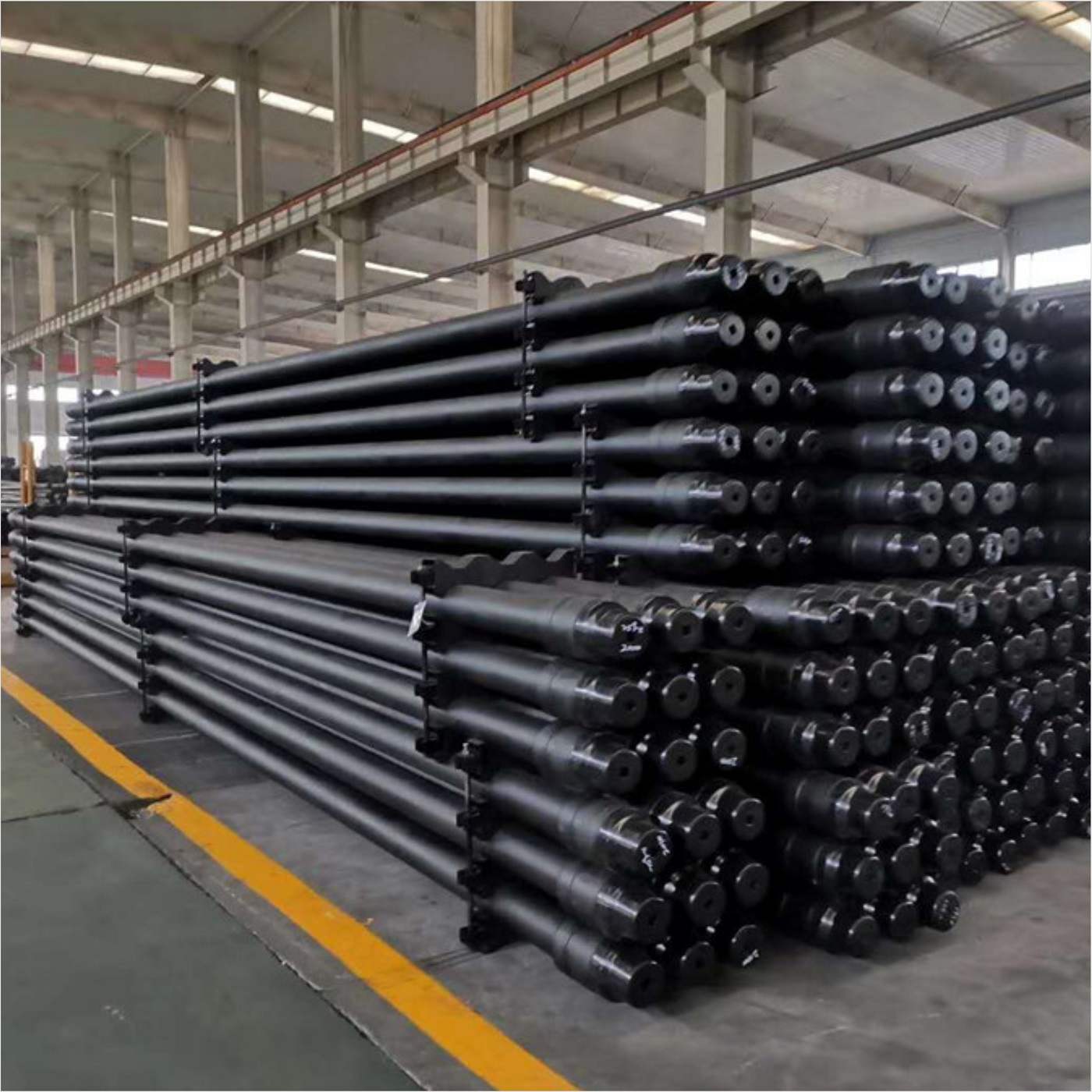

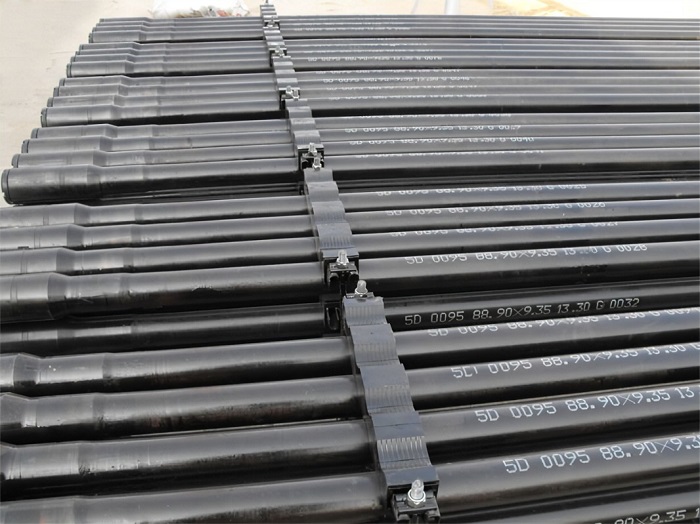

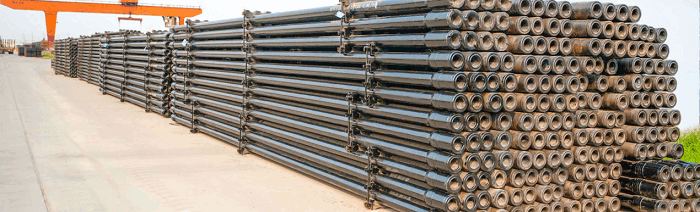

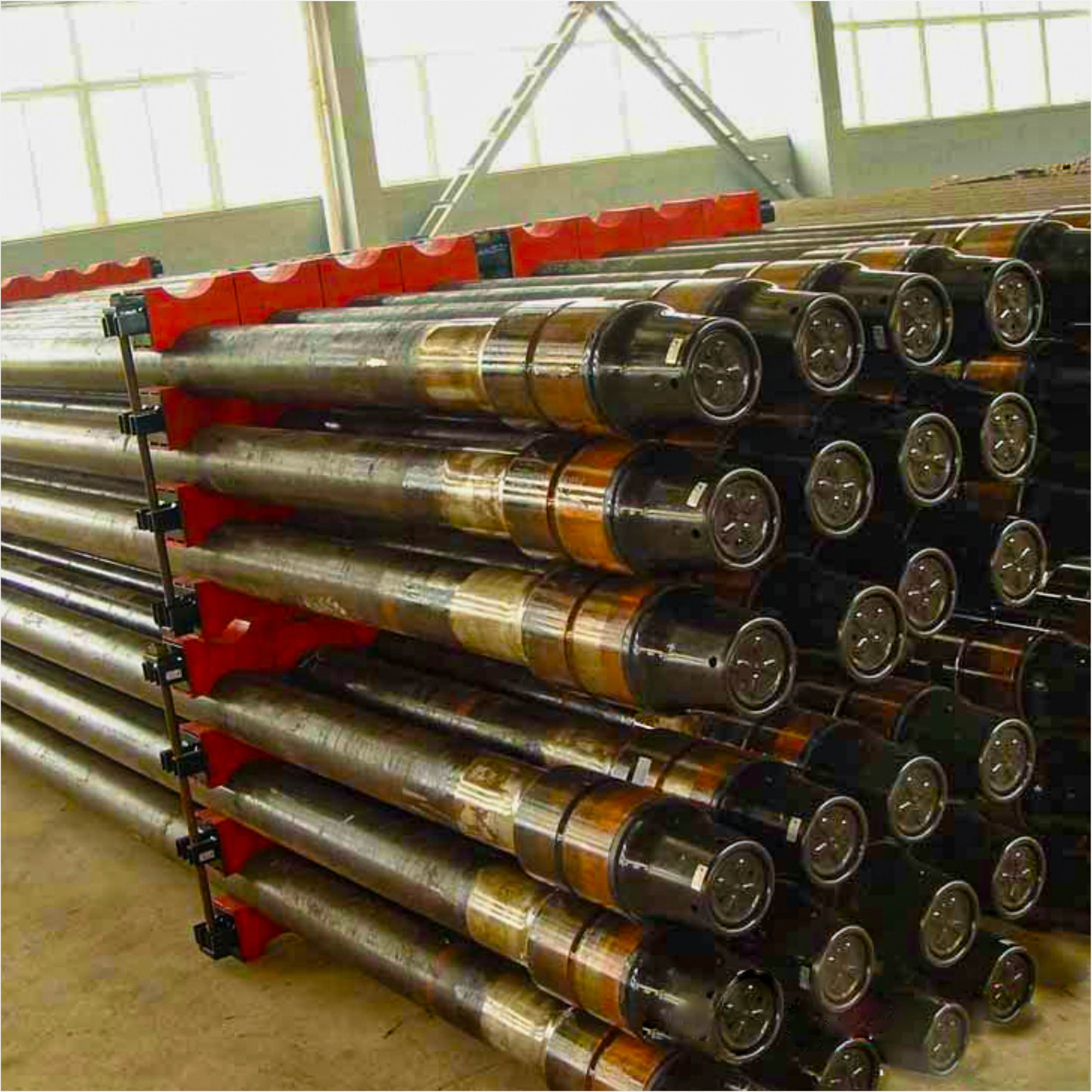

High Steel Grade Drill Pipe and High Torsion-Resistant Drill Pipe

I. Basic Information

Product name	Inventory quantity	Years already spent	Manufacturer	Product status (new/used)	Mode
High steel grade drill pipe, and high torsion-resistant drill pipe	38235	3 years	Shuguang Huayang, Bohai Nengke, Shanghai Hilong	Grade A qualified product	Rental

II. Product Introduction

1. As the wells drilled deeper and deeper at present, in order to get higher tensile and torsion-resistant requirements for drill pipes, our company has introduced the high steel grade and high torsion-resistant drill pipe, which has higher tensile strength and torsional strength compared with the API drill pipe. Therefore, deeper wells will be drilled. Special material and unique heat treatment process enable the drill pipes to meet the requirements of yield strength and tenacity and to have better breaking tenacity and fatigue resistance. Improved specification and dimension are beneficial to increasing the hydraulic efficiency of drill well and fit for deep wells, extra-deep wells and large-displacement horizontal wells, with high strength, high tenacity and high fatigue resistance.

2. Specification parameters;

Nominal size in	5 7/8″ dual-ledge	5 7/8″ dual-ledge	5″ non-standard	4″ non-standard

Nominal weight kg/pcs.	420	410	345	270

External diameter of body mm	149.2	149.2	127	101.6
Steel grade	V150	V150	V150	V150
Wall thickness mm	10.52	9.65	10.92	10.54

Internal diameter of body mm	128	129.9	105	80.52

External diameter of connector mm	184.2	184.2	172	127

Internal diameter of female connector mm	101.6	101.6	100	61.9
Internal diameter of male connector mm	101.6	101.6	88.9	61.9

Screw thread connection buckle type	5 1/2FH dual-ledge	5 1/2FH dual-ledge	NC52T	DS39

Torsion resistance of pipe KN·m	177	165	114	74
Tensile strength of pipe KN	4747	4376	4124	2880
Internal pressure strength Mpa	127	117.1	140	187.8
Collapsing strength Mpa	109.7	89.6	146.3	192.3
Internal volume l/m	13.25	13.25	8.52	4.96
Closed discharging l/m	18.15	18.17	13.33	8.51
Opening discharging l/m	5.56	5.25	4.9	3.31
Makeup torque kN·m	48	48	42	32

3. Application cases;

Domestic oil regions, such as Tarim Oilfield, Xinjiang Oil Field, Northwest Petroleum Bureau, Changqing, and Southwest Oil and Gas Field.
